ㆍGPS Signal Converter :
Position to Distance Translation
from BASE-ZERO-Position
ㆍMessage Support :
NMEA-0183 V3.0
ㆍInput Signal :
RS-232/422, Ethernet-TCP/IP
ㆍOutput Signal :
RS-232/422, 24VDC-24Point(4x6)
|
|
| |
|
|
| |
|
| |
|
| Specification |

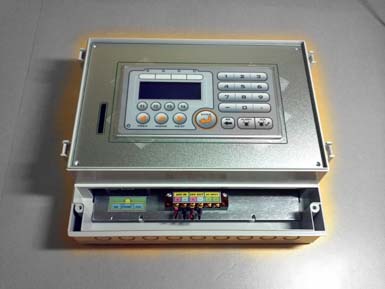

GDM-0150EC |
|
Input Message |
NMEA-0183 V3.0
|
|
Input Ports
(GPS Message)
|
Ethernet : RJ45
Serial : RS-232C / DB9
RS-422 / DB9
|
|
Output Ports
(Distance Signal)
|
Seria l : RS-232/422 (ASCII TEXT)
24V-IO : 24-Point / Open Collector
(XXXX.XX or XXX.XXX)
Ethernet: TCP/IP Message
|
|
Encoding Rate
|
Input : 10Hz / GPS-Position
Output : 100~300msec / Distance
(3:1 Average Output)
|
|
Power Supply
|
Auto sensing 100/240VAC 50/60Hz
AC/DC Adapter (12/24V,1~2A)
|
|
Temperature |
0-60 degrees Celsius
|
|
Humidity |
20% to 80% relative humidity
|
|
Dimension |
296 x 256 x 123 [mm]
|
|
|
|
