Features
- Free Assembled Cable & Connectors
- Low VSWR
- Low Attenuation
- High Power Capability
- Excellent
- Water Proof

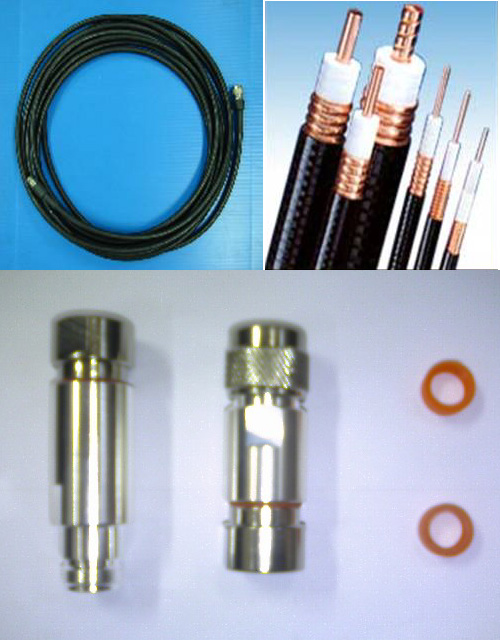

- Super High Flexible Coaxial |
|
|
|
| |
|
Cable
Specification (HFSC-12D, 10/15/20/30m, Connector N-Type) |
| |
|
| |
|
| |
|
| |
|
내부도체
저항
|
2.70 ohm/km @ 20?C |
외부도체
저항
|
3.20 ohm/km |
절연 저항
|
1,000 Mega-ohm/km
@ DC 500V for a minute |
절연 내력
|
DC 2,500V for a minute |
특성임피던스
|
50 ohm |
DRF-10KIT
|
10m (10000mm) |
DRF-15KIT
|
15m (15000mm) |
DRF-20KIT
|
20m (20000mm) |
DRF-30KIT
|
30m (30000mm) |
Attenuation
|
19.6 dB/100m / 2,400MHz
@ 20?C |
Inner
Diameter
|
3.6 mm |
Dielectric
Diameter
|
8.9 mm |
Outer
Diameter
|
12.3 mm |
Jacket
Diameter
|
13.9 mm |
Min.
Bending radius
|
35 mm |
|
|
| |
|
|
| |
| |
|
