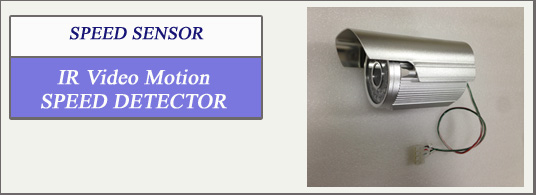

| MODEL |
DVS-IR200BC |
| Sensor Type |
IR Video Speed Sensor
(IR LED Light Source Included)
|
| Frame Rate |
2400 FPS |
| Install Range |
0.5 ~ 1.2 Meter |
| Sensing Range |
± 15 cm |
| Sensing Speed |
0.2 ~ 10 M/Sec (1.0 ~ 36 Km/H) |
| Speed Accuracy |
< ± 2.0 % (Less Then) |
| Output Signal |
Serial RS-422/485 |
| Power Supply |
12~24VDC, 2.0A |
| Temperature |
-20 ~ +50 degrees Celsius |
| Humidity |
20 ~ 80 % relative humidity |
| Dimension |
300H x 200W x 160D [mm] |
|
|
 |

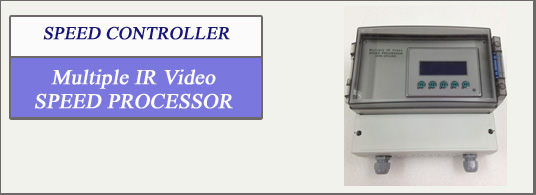

| MODEL |
DVS-CPU400 |
| Input Signal |
Pulse Count Data
from RS-422/485 of DVS-IR200
(Dual/2EA Sensor Support)
|
| Update Rate |
0.5 / 1.0 / 2.0 Hz (Programmable) |
| Display (LCD) |
4-Line, 20-Characters |
| Output Range |
1.0 ~ 8.0 M/Sec (Programmable) |
| Threshold |
5.0~30 % (Programmable) |
| Output Signal |
Relay 2A2B / Contact |
| Power Supply |
12~24VDC, 2.0A |
| Temperature |
-20 ~ +50 degrees Celsius |
| Humidity |
20 ~ 80 % relative humidity |
| Dimension |
185H x 235W x 120D [mm] |
|
