    ㆍArray Pulsed Laser TOF Scanner.
    → 최고성능의 투과율 및 안정성
 ㆍ4000Hz Scan Rate - Speed.
 ㆍDistance: 250M/Max, 80M@10%.
 ㆍ1000point/Scan, 0.09˚/ 90˚ Step.
 ㆍResolution: 1mm.
 ㆍAccuracy: 4mm.
 ㆍProtection: IP67 NEMA-4X.
 ㆍ방폭인증외함(DPS-2590EX).

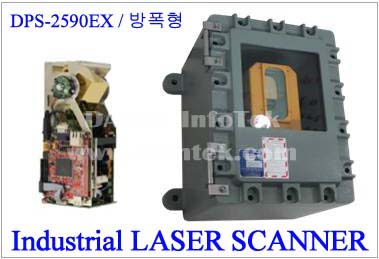

MODEL
DPS-2590EX
  Laser Type
  Laser Type: Pulse Laser Diode
  Wavelength: 905 nm (Infrared)
  Safety: Class 1M, EN 60825-1
  Pointer Laser: 645 nm (RED), Class 2
  SCAN & SPOT PROPERTIES
  SCAN Angle: 90˚(45~135˚)
  SCAN Rate: 20Hz, Resolution: 0.09˚(1000-Point/Scan)
  SCAN Rate: 40Hz, Resolution: 0.18˚(500-Point/Scan)
  Beam Divergence (Y,V): 1.33 mrad(0.076˚, 0.13M @ 100 m)
  Beam Divergence (X,H): 0.30 mrad(0.020˚, 0.03M @ 100 m)
  Focusing SPOT: 12x16[mm]@45Meter
  Measuring Quality
  Distance Resolution: 1[mm]
  Distance Accuracy: 4[mm] (σ of single measurement: 4mm)
  Working Range Distance @White-Target: 250Meter @100%
  Working Range Distance @Dark-Target: 80Meter @10%
  Working Range Minimum: 1.6Meter
  Power and Interface
  Power Input: 24VDC ( 2.0A/Max )
  LAN Port: Ethernet RJ45
  Serial Port: RS-232 & RS-422
  Environmental
  Operating Temperature: -10 to +50 [°C]
  Humidity: 20% to 80% relative humidity
  Enclosure Housing
  (Dimension)
  Housing: 300 x 400 x 300 [mm]
  AL Die Casted, Dust proven / Protection: IP65 NEMA-4X
  방포인증(분진): Ex tD A21 IP65




    ㆍArray Pulsed Laser TOF Scanner.
    → 최고성능의 투과율 및 안정성
 ㆍ20~40Hz Scan Rate - Speed
 ㆍDistance: 250M/Max, 80M@10%.
 ㆍ1000point/Scan, 0.09˚/ 90˚ Step.
 ㆍResolution: 1mm.
 ㆍAccuracy: 4mm.
 ㆍProtection: IP67 NEMA-4X.
 ㆍ방폭인증외함(DPS-2590EX).

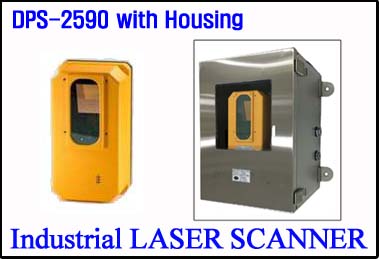

MODEL
DPS-2590
  Laser Type
  Laser Type: Pulse Laser Diode
  Wavelength: 905 nm (Infrared)
  Safety: Class 1M, EN 60825-1
  Pointer Laser: 645 nm (RED), Class 2
  SCAN & SPOT PROPERTIES
  SCAN Angle: 90˚(45~135˚)
  SCAN Rate: 20Hz, Resolution: 0.09˚(1000-Point/Scan)
  SCAN Rate: 40Hz, Resolution: 0.18˚(500-Point/Scan)
  Beam Divergence (Y,V): 1.33 mrad(0.076˚, 0.13M @ 100 m)
  Beam Divergence (X,H): 0.30 mrad(0.020˚, 0.03M @ 100 m)
  Focusing SPOT: 12x16[mm]@45Meter
  Measuring Quality
  Distance Resolution: 1[mm]
  Distance Accuracy: 4[mm] (σ of single measurement: 4mm)
  Working Range Distance @White-Target: 250Meter @100%
  Working Range Distance @Dark-Target: 80Meter @10%
  Working Range Minimum: 1.6Meter
  Power and Interface
  Power Input: 24VDC ( 2.0A/Max )
  LAN Port: Ethernet RJ45
  Serial Port: RS-232 & RS-422
  Environmental
  Operating Temperature: -10 to +50 [°C]
  Humidity: 20% to 80% relative humidity
  Enclosure Housing
  (Dimension)
  Housing: 300 x 400 x 300 [mm]
  SUS, Outdoor / Dust proven
  Protection: IP65 NEMA-4X
