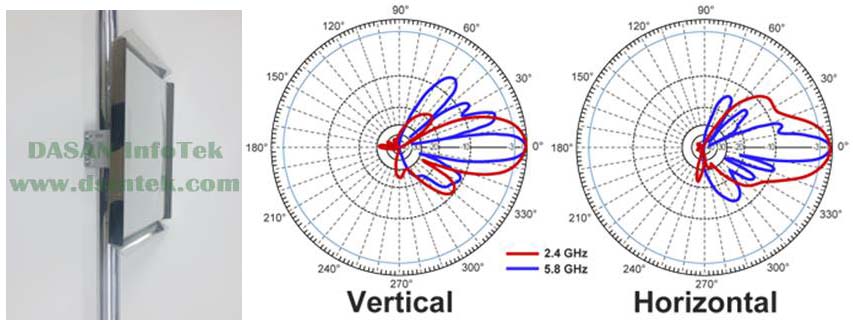

  Electronic Specification

  Operating Frequency (MHz)

  Antenna Type

  VSWR

  Gain (dBi)

  Polarization

  Max Input Power

  Beam Width 2.4GHz (degree) / -3dB

  Beam Width 5GHz (degree) / -3dB

  Axial Ratio for LHCP

  Connector Type

   Impedance (ohm)


  2.4-2.5 & 5.15-5.85 GHz

  Micro Strip Patch

  1 : 2.0 (less)

  17@2.4GHz & 20@5GHz

  Horizontal or Vertical

  50 Watts

  24Hx24V @2.4GHz

  12Hx12V @5GHz

  3.0dB max.

  N-Female

  50


  Mechanical Specification

  Dimensions (mm)

  Operational Winds (Km/h)

  Operational Temp

  Elevation Adjustment Range

  Azimuth Adjustment Range

   Fixed mount type


  345W x 345H x 50D

  Max. 210

  -40¡ÆC to 85¡ÆC

  20 degree

  360 degree with Pole

  Pole mount (30~50mm)



Cable Specification (HFSC-12D, 10/15/20/30m, Connector N-Type)
  Specification   HFSC-12D
  Inner Conductor DC Resistance   2.70 ohm/km @ 20?C
  Outer Conductor DC Resistance   3.20 ohm/km
  Insulation Resistance   1,000 Mega-ohm/km @ DC 500V for a minute
  Dielectric Strength   DC 2,500V for a minute
  Characteristic Impedance   50 ohm
  DRF-10KIT   10m (10000mm)
  DRF-15KIT   15m (15000mm)
  DRF-20KIT   20m (20000mm)
  DRF-30KIT   30m (30000mm)
  Attenuation   19.6 dB/100m / 2,400MHz @ 20?C
  Inner Diameter   3.6 mm
  Dielectric Diameter   8.9 mm
  Outer Diameter   12.3 mm
  Jacket Diameter   13.9 mm
  Min. Bending radius   35 mm
