 ㆍEthernet Peer-to-Peer Remote IO Link System

 ㆍBy-Directional IO-Link over Ethernet Network

 ㆍHigh Speed Remote-IO-Link (Delay 100msec/Max)

 ㆍNetwork Management/Monitoring Support

 ㆍWired & Wireless Network Compatible (TCP/IP)

 ㆍOn-Line/Communication Inter-Lock Support

 ㆍRemote Firmware Upgrade Support





MODEL
Specification

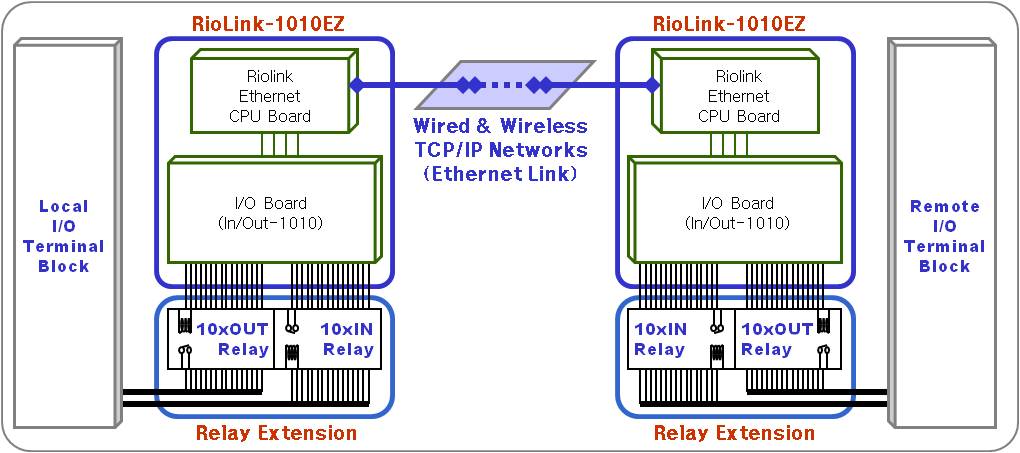

Riolink-1010EZ
   10-Point By-Directional Ethernet IO Link Unit

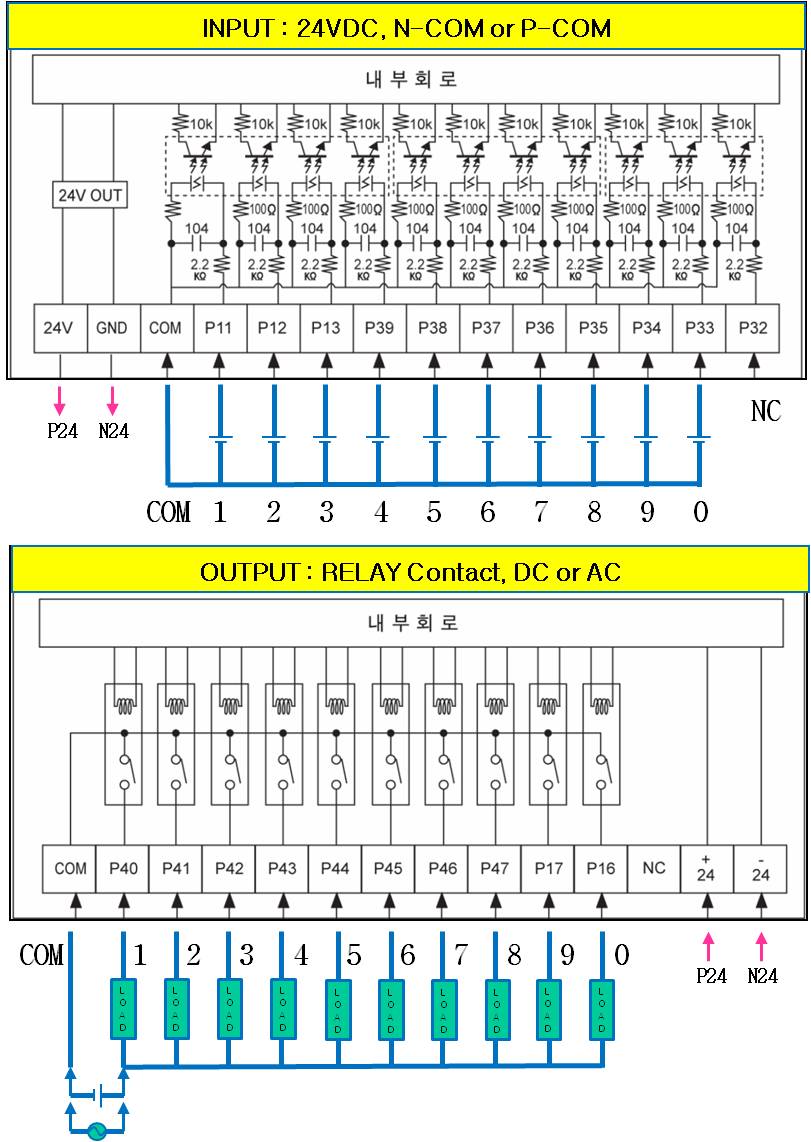

  ㆍINPUT Contact : 10 EA ( 24VDC Input / N or P common )

  ㆍOUTPUT Contact : 10 EA ( Relay Output / 3Amp )

  ㆍInterface : Ethernet TCP/IP

  ㆍLink Speed/Delay : 100msec/Max

  ㆍInter-Lock Timeout : 500msec ~ 5000msec ( Programmable )

  ㆍDimension : 200 x 300 x 110 [WxHxD]mm

  ㆍOperation Power : 24VDC 1.5A/Max ( Optional 100~240VAC )

  ㆍOperation Temperature : 0 ~ +50 degrees Celsius









 ㆍEthernet Peer-to-Peer Remote IO Link System

 ㆍBy-Directional IO-Link over Ethernet Network

 ㆍHigh Speed Remote-IO-Link (Delay 100msec/Max)

 ㆍNetwork Management/Monitoring Support

 ㆍWired & Wireless Network Compatible (TCP/IP)

 ㆍOn-Line/Communication Inter-Lock Support

 ㆍRemote Firmware Upgrade Support





MODEL
Specification

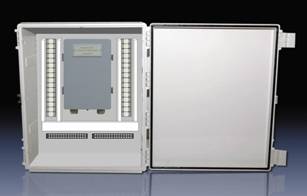

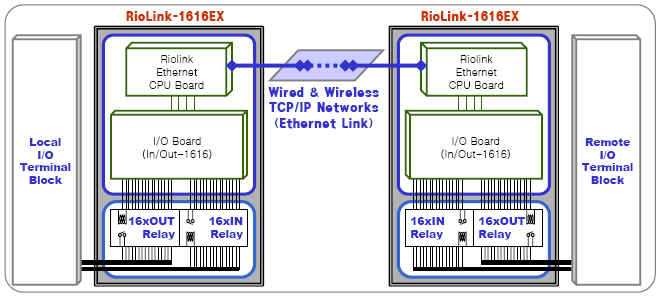

RioLink-1616EX
(Outdoor Model)
   ㆍ16-Point By-Directional Ethernet IO Link Unit with Outdoor Extension

  ㆍINPUT Contact : 16ea/Max [ 24/48/110/220 Volt DC/AC Relays ]

  ㆍOUTPUT Contact : 16ea/Max [ Relay Extension - 2C 5Amp ]

  ㆍInterface : Ethernet TCP/IP

  ㆍLink Speed/Delay : 100msec/Max

  ㆍInter-Lock Timeout : 500msec ~ 5000msec ( Programmable )

  ㆍOperation Power : 100~240VAC 50/60Hz

  ㆍDimension : 500 x 600 x 250 [WxHxD]mm

  ㆍHousing : Outdoor PC/ABS - IP66
